Septic tanks

Septic tank 4000 AB Two-Chamber

Septic tank 4000 AB Two-Chamber

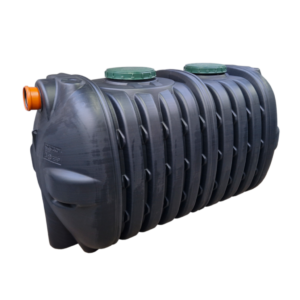

The AB septic tank is a two-chamber, monolithic tank made of high-density polyethylene HDPE, made by extrusion blow molding. A partition placed inside the tank divides the tank into two sewage treatment chambers: preliminary and main. The septic tanks are also equipped with a basket filled with PP filtering material, which is installed at the sceptic tank outlet. The use of the filter allows to increase the level of sewage treatment in the sceptic tank, which has a measurable impact on the life of the infiltration bed. The septic tank is intended for installation at single-family houses and summer houses.

Characteristics:

  • Made of high-density polyethylene HDPE
  • Low tank weight
  • Easy assembly
  • Convenient transportation
  • Shallow tank foundation depth
  • Screw-on tight covers
  • Removable basket filled with filter material
  • Inspection connection at the inlet of the treatment plant
  • Optimal flow hydraulics
  • Inspection manholes with a diameter of Ø400 mm
  • Resistance to chemical corrosion
  • Integrated mounting brackets
  • High mechanical resistance
  • Screw-on inspection risers
  • 10-year warranty on the tank
  • Compliant with PN-EN 12566-1

Septic tank designed to work in a system of 6-8 users (PE – Population Equivalent).

Product code: 2432     EAN: 5901095524325

MATERIAŁY DO POBRANIA

Typ zbiornika

4000l dwukomorowy

Dane techniczne osadnika gnilnego 4000 AB dwukomorowego:

Średnica wlotu/wyl. [mm]
160/110
Długość zbiornika [mm]
3150
Szerokość zbiornika [mm]
1220
Wysokość zbiornika [mm]
1470
Wysokość do wlotu [mm]
1240
Wysokość do wylotu [mm]
1220
Włazy rewizyjne [mm]
2x Ø400
