Septic tanks

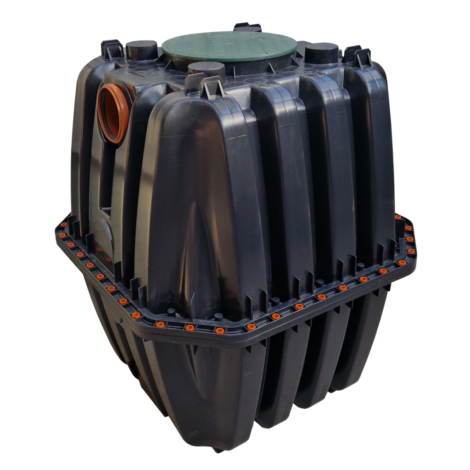

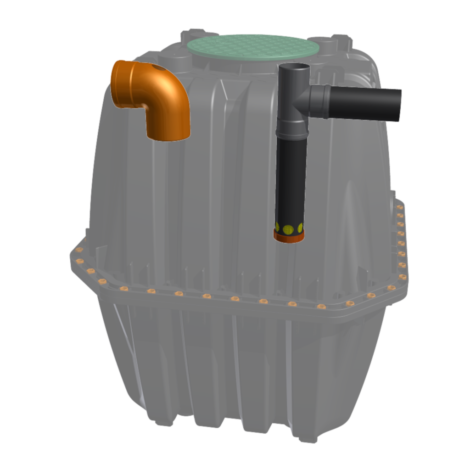

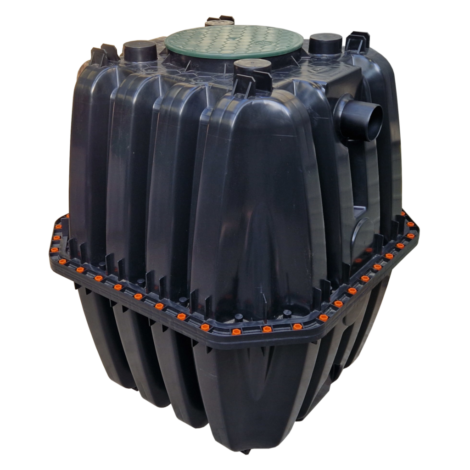

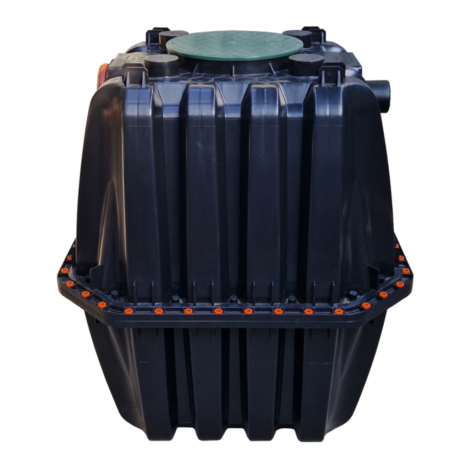

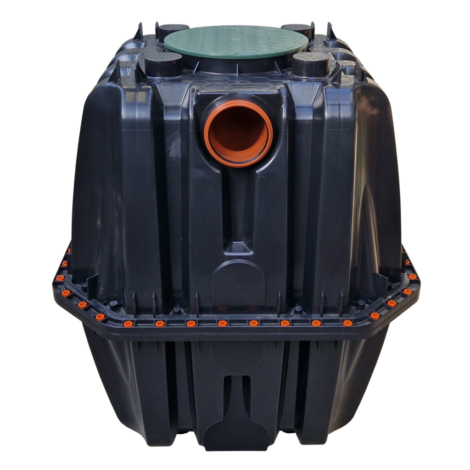

Septic tank ECOBIN 1000

Septic tank ECOBIN 1000

The septic tank ECOBIN 1000 is a single-chamber tank made of high-density polyethylene HDPE, made by by injection molding. Intended for installation at single-family houses, summer houses, outbuildings and public facilities. The septic tank is the basic component used in domestic sewage treatment systems. In the septic tank, the processes of sedimentation and flotation of pollutants contained in the sewage, as well as sludge fermentation, take place. The septic tank ECOBIN 1000 is a unit that can be used to extend the septic tanks ECOBIN 2000 and 3000. The tanks can be connected to form extensive battery systems. The tank is designed for installation in the ground, features an inspection manhole, a Ø160 inlet and a Ø110 outlet.

Characteristics:

  • Made of high-density polyethylene HDPE
  • Low tank weight
  • Easy assembly
  • Convenient transportation
  • Shallow tank foundation depth
  • Screw-on tight cover
  • Integrated filtration basket
  • Inspection manhole with a diameter of Ø400 mm
  • Resistance to chemical corrosion
  • High mechanical resistance
  • Screw-on inspection riser
  • 10-year warranty on the tank

The sceptic tank is intended for work in the system of 1-2 users (PE – Population Equivalent), nominal daily wastewater flow – 300 litres per day.

Product code: 4066      EAN: 5907378240487

MATERIAŁY DO POBRANIA

Typ zbiornika

1000 AQ

Dane techniczne Osadnika gnilnego ECOBIN 1000:

Średnica wlotu/wyl. [mm]
160/110
Długość zbiornika [mm]
1170
Szerokość zbiornika [mm]
1170
Wysokość zbiornika [mm]
1410
Wysokość do wlotu [mm]
1180
Wysokość do wylotu [mm]
1160
Włazy rewizyjne [mm]
1xØ400
