Septic tank ECOBIN 2000 (double chamber)

Septic tank ECOBIN 2000 (double chamber)

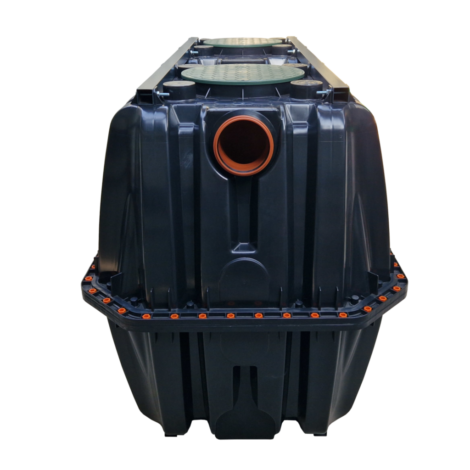

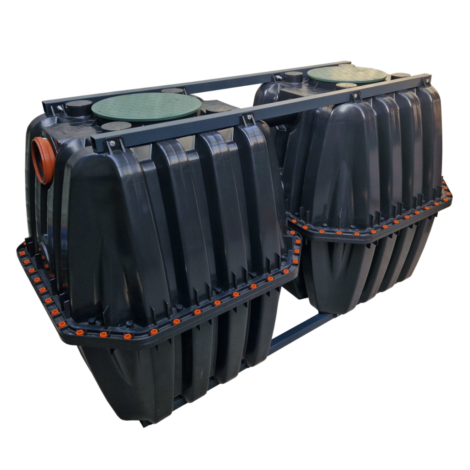

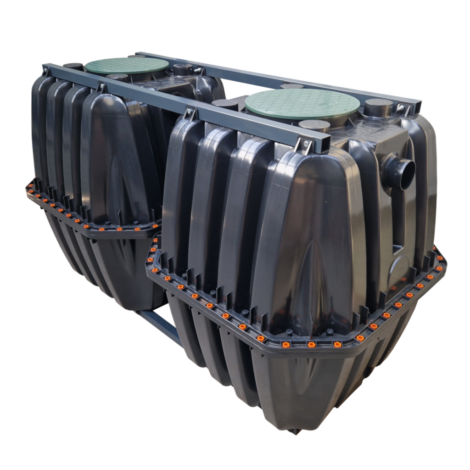

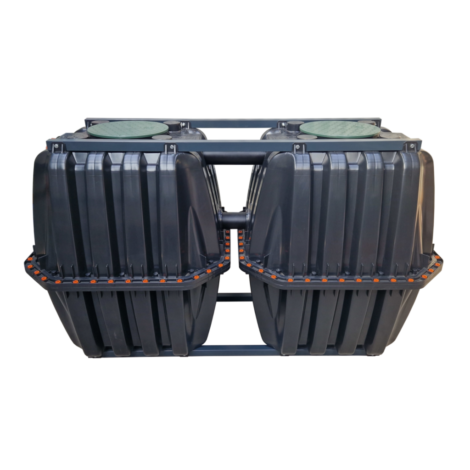

The septic tank ECOBIN 2000 is a system comprising two 1000 litres tanks made of high-density polyethylene HDPE, made by by injection molding. Intended for installation at single-family houses, summer houses, outbuildings and public facilities. The septic tank is the basic component used in domestic sewage treatment systems. In the septic tank, the processes of sedimentation and flotation of pollutants contained in the sewage, as well as sludge fermentation, take place. The septic tank ECOBIN 2000 is fitted with a basket filled with PP filter material. The tank is designed for installation in the ground, features an inspection manholes, a Ø160 inlet and a Ø110 outlet.

Characteristics:

  • Made of high-density polyethylene HDPE
  • Low tank weight
  • Easy assembly
  • Convenient transportation
  • Shallow tank foundation depth
  • Screw-on tight cover

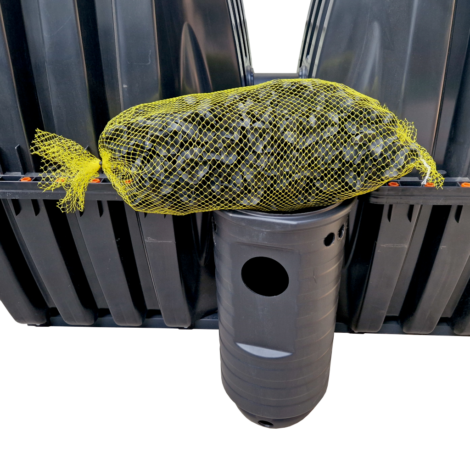

  • Integrated filtration basket
  • Inspection manholes with a diameter of Ø400 mm
  • Resistance to chemical corrosion
  • High mechanical resistance
  • Screw-on inspection riser
  • 10-year warranty on the tank

The sceptic tank is intended for work in the system of 1-4 users (PE – Population Equivalent), nominal daily wastewater flow – 600 litres per day.

Product code: 4067      EAN: 5907378240494

MATERIAŁY DO POBRANIA

Typ zbiornika

1000 AQ

Dane techniczne Osadnika gnilnego ECOBIN 2000:

Średnica wlotu/wyl. [mm]
160/110
Długość zbiornika [mm]
2400
Szerokość zbiornika [mm]
1170
Wysokość zbiornika [mm]
1410
Wysokość do wlotu [mm]
1180
Wysokość do wylotu [mm]
1160
Włazy rewizyjne [mm]
2xØ400
