Absorbing well

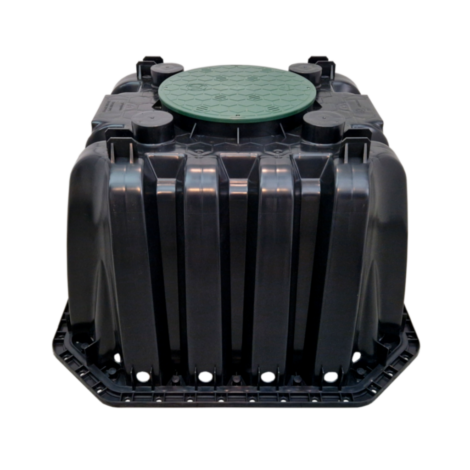

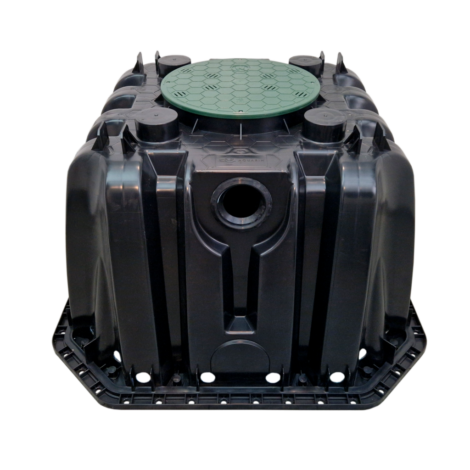

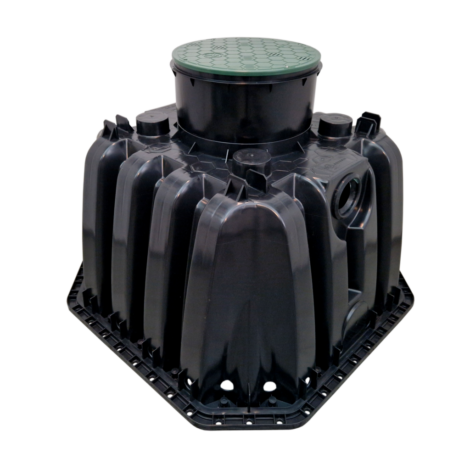

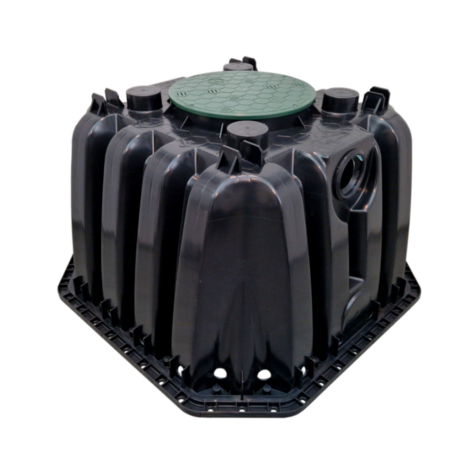

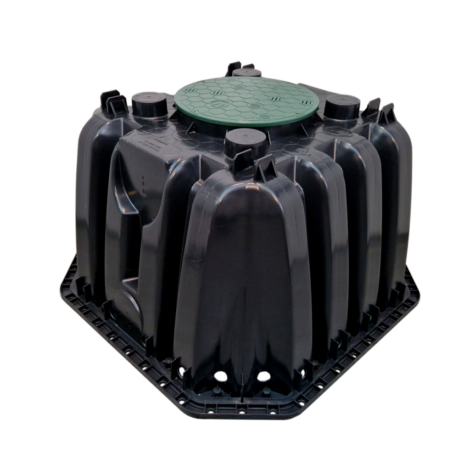

Absorbing well 500 AQS

Absorbing well 500 AQS

The absorbing well 500 AQS are designed for infiltration of sewage containing impurities from households in the ground. The construction of absorbing wells also allows them to be used for storage and infiltration of rainwater. We lay the well in the ground, creating gravitational infiltration deposits. On the side walls, the well has holes through which sewage and rainwater can be infiltrated into the ground. The absorbing well 500 AQS are made of HDPE (high-density polyethylene) by injection molding. The production method used allows to obtain products with a compact and lightweight structure. Each well has ribs that strengthen the structure. The height of the side perforation of the well is 100 mm. The capacity of a single well is 500 liters.

Characteristics:

  • Made of high-density polyethylene HDPE
  • For infiltration of sewage and rainwater in the ground
  • Easy assembly
  • Convenient transportation
  • Lightweight design
  • Possibility of combining into complex systems
  • Perforated cover Ø400 for ventilation
  • Screw-on inspection riser
  • Resistance to chemical corrosion
  • High mechanical resistance

  Product code: 4055      EAN: 5907378240005

MATERIAŁY DO POBRANIA

Dane techniczne Studnia chłonna 500 AQS:

Długość [mm]
1170
Szerokość [mm]
1170
Wysokość [mm]
710
Waga [kg]
23
Pow. rozsączania dolna [m2]
1,2
Pow. rozsączania boczna [m2]
0,3
Pow. rozsączania całkowita [m2]
1,5
