Biological treatment plants OPTIMAX PRO

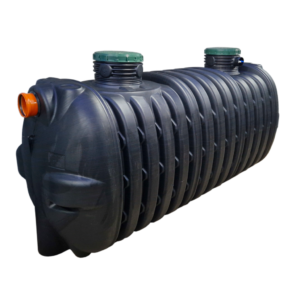

Biological treatment plant OPTIMAX PRO 8

Biological treatment plant OPTIMAX PRO 8

The OPTIMAX PRO household biological treatment plant is a two-tank, two-chamber, biological sewage treatment plant, working on the principle of activated sewage in the SBR (Sequential Batch Reactor) technology. It was built on the basis of a monolithic tanks with a capacity of 4000 liters. The tanks were made in the extrusion blow molding technology of high-density polyethylene HDPE.

The OPTIMAX PRO treatment plant has an inlet connection with a diameter of 160 mm and an outlet with a diameter of 110 mm. There are additional connections on the tanks, such as high ventilation, connection to the control unit; all of them have a diameter of 110 mm. Inspection hatches located on the treatment plant provide excellent access to the inside of the plant in case of servicing or pumping out heavy sludge.

Each device is equipped with an advanced controller that implements the manufacturer’s proprietary algorithm. The controller together with the blower was placed in an external box. The sewage treatment plant is equipped with a holiday mode and programmable timers to monitor service activities. The treatment plants are characterized by low energy consumption, quiet operation and reliability. Its simple construction and easy operation make it a user-friendly device.

The OPTIMAX PRO treatment plant is CE marked and complies with the PN-EN 12566-3.

Characteristics:

  • Tanks made of high-density polyethylene HDPE
  • Low tanks weight
  • Easy assembly
  • Convenient transportation
  • Shallow tanks foundation depth
  • Screw-on tight covers
  • Optimal flow hydraulics
  • Inspection manholes with a diameter of 400 mm
  • Resistance to chemical corrosion
  • Integrated mounting brackets
  • High mechanical resistance
  • Screw-on inspection risers
  • Low energy consumption
  • Advanced and reliable control unit
  • 10-year warranty on the tank
  • 2-year warranty on the unit
  • Complies with PN-EN 12566-3

The OPTIMAX PRO 8 treatment plant is designed to operate in the system of 7-8 users (PE – equivalent number of inhabitants) for sewage flow up to 1200 l/day.

Product code: 2828     EAN: 5901095528286

MATERIAŁY DO POBRANIA

Typ zbiorników

4000l + 4000l

Dane techniczne oczyszczalni biologicznej OPTIMAX PRO 8:

Średnica wlotu/wyl. [mm]
160
Długość oczyszczalni [mm]
6900
Szerokość zbiornika [mm]
1220
Wysokość zbiornika [mm]
1640
Wysokość do wlotu [mm]
1240
Wysokość do wylotu [mm]
1220
Włazy rewizyjne [mm]
4x Ø400
