Separators

Grease separator SL-SG (flow up to 3,0 l/s)

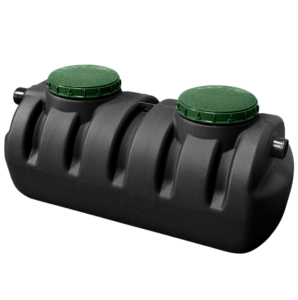

Grease separator SL-SG 1000

The grease separator is a device that should be installed between the kitchen and bathroom sewage outlets and the household sewage treatment plant. The task of the fat separator is to separate the fat contained in the wastewater. The separated fat is retained and stored in the separator basket. Waste water from toilets should not be fed into grease separators.

Fat separators are built on the basis of monolithic tanks with a capacity of 200, 500, 800 and 1000 liters. The tanks were made in the extrusion blow molding technology of high-density polyethylene HDPE.

Characteristics:

  • Made of high-density polyethylene HDPE
  • Low tank weight
  • Easy assembly
  • Convenient transportation
  • Shallow tank foundation depth
  • Screw-on sealed covers
  • Integrated separation filter
  • Inspection manholes Ø400 mm
  • Resistance to chemical corrosion
  • High mechanical resistance
  • Screw-on inspection risers
  • 10-year warranty on the tank

Product code: 2331     EAN: 5901095523311

MATERIAŁY DO POBRANIA

Typ zbiornika

1000l

Dane techniczne separatora tłuszczu SL-SG 1000:

Przepływ [l/sek]
3.0
Średnica wlotu/wyl. [mm]
110
Długość [mm]
1700
Szerokość [mm]
770
Wysokość [mm]
1230
Wysokość do wlotu [mm]
1000
Wysokość do wylotu [mm]
930
Włazy rewizyjne [mm]
2x Ø400
